MYUAV RTH850RTK Tethered Drone for Public Security and Lighting
The new RTH850-RTK is designed specifically with inspections, surveying, public safety applications and fawn rescue in mind.
Our hexacopter design offers more safety, power, efficiency, stability and capacity to carry heavier payloads.
Depending on the payload and weather conditions, flight times up to 63 minutes are possible.
In addition to the performance and payload flexibility, great emphasis was placed on the RTH850 flight and data security when developing it. Flight data belongs to you and to nobody else.
The RTH850 is equipped with a dual IMU, compass, barometer, dual RTK antennas and two smart batteries. Even with only five motors running, you are able to land the RTH850 safely.
Drone's specifications:
Weight: 5800 gram, inclusive 2 flight battery
MTOW: 8800g
Max Payload Weight: 3000g
Diagonal Size: 850mm
Unfolded: 440×365×470 mm
Max Ascend Speed: 3 m/s
Max Descent Speed: 2-5 m/s
Max Horizontal Speed: 20 m/s
Max Flight Speed: 72 km/h
Max. Flight Ceiling (MSL): 5000m
Max Flight Time: 63 minutes (without payload)
Battery 23.1volt: 2* Li-ion HV, 6S,12800mAh
Position System: GPS, Glonass, Beidou&Galileo
Hovering Accuracy(Single): Horizon:±0.5m Vertical:±0.5m
RTK(RMS) Accuracy: 1cm +1ppm(H); 1.5cm+1pp
Operating Temperature: -20°C-50°C (-4° F -122° F)
Payload Connector: X-connector
Compatible Payloads: E20TVx, E90X, E30Zx, ETx
Upward Gimbal: Optional
Hot-swappable Batteries & Payloads: Yes
IP: x5
Collision Avoidance System: Millimeter-wave Radar(optional)
GMAC 1000Mb, USB-C
Connectivity Ports and Power Supply RTH850: 5v+GND, 2x PWM,2x GPIO, 5 power requirements.
Autopilot: PX4 Based

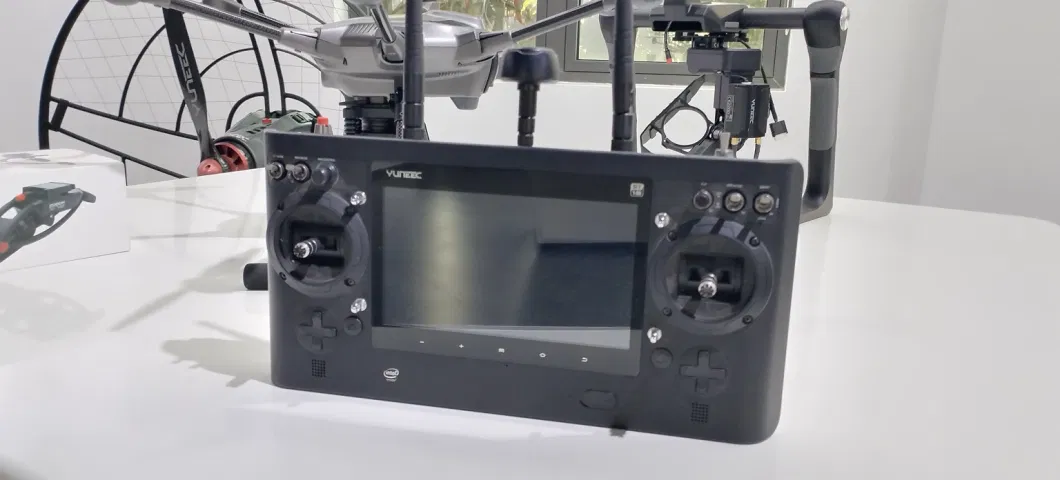

Remote Controller:
• 7-inch touch screen
• 1920x1200 screen resolution
• 1000 nit luminance
• Operating Frequency: 2.400 - 2.4835 GHz and 5.725 - 5.850 GHz( 800MHz/1.4GHz optional)
• 10 km range Fcc (15 km range Fcc is optional )
• 8 km range Ce
• 8 hours of operation time
• 10.000 mAh/7.4-volt battery
• 40 Mbps dual-band
• Dynamic Frequency hopping
• IP x4
• Cortex A72&A53 high-performance processor • Android 10
• 32Gb ROM / 4 Gb RAM
• HDMI
• USB-C, USB-3 & USB-2 • Micro SD
• 1.2 kg only
• No data sharing
Batteries:
• Size: 98×58×149mm
• Battery Capacity: 12.800mAh
• Battery Wattage: 295.68Wh Standard
• Voltage: 23.1v (3.85v/cell)
• Charging Voltage: 26.4v
• Battery Type: Li-ion
• Fast Charge: 1C (10 Amp) Charging Time: 1,5 hours
• Max Continuous Discharge Current: 64A Maximum Discharge
• Current: 128A Weight: 1390 gram
• Operating Temperature: 0°C+45°C
Charger Case:
With the RTH850 Power Charging Case, you are able to charge four RTH850 batteries and two batteries simultaneously!
Thanks to the hard-case design, you can store and transport the batteries safely. The compact design makes it able to carry the power Charging Case easily.
SPECIFICATIONS:
•3.5" Color LCD Display •1140 watt (200v-250v) •220/110 volt •Transport case
•Easy to operate •Buzzer alarm •Compact (370×270×220mm)
•Foam cover battery protection
In the packing box
RTH850-RTK Airframe *1
Ground Station Controller *1
Ground Station Battery *1
Intelligent Charging Station *1
Transport Case *1
Intelligent Flight Batteries *2
Landing Gear Assemblies *2
Clockwise A Propellers *3
Counter-Clockwise B Propellers *3
Quick Start Guide *1
Reference Card *1
