FlyCart 30 240m high
Tethered Drone System
1. Brief introduction
- FC30 UAV long endurance hovering
Ground station continuously provides drone-power electricity for 8 hours of hovering which enables clean / spray work can last long
- Multiple ways to supply power
25kw max. 380V industrial power supply, generator power supply.

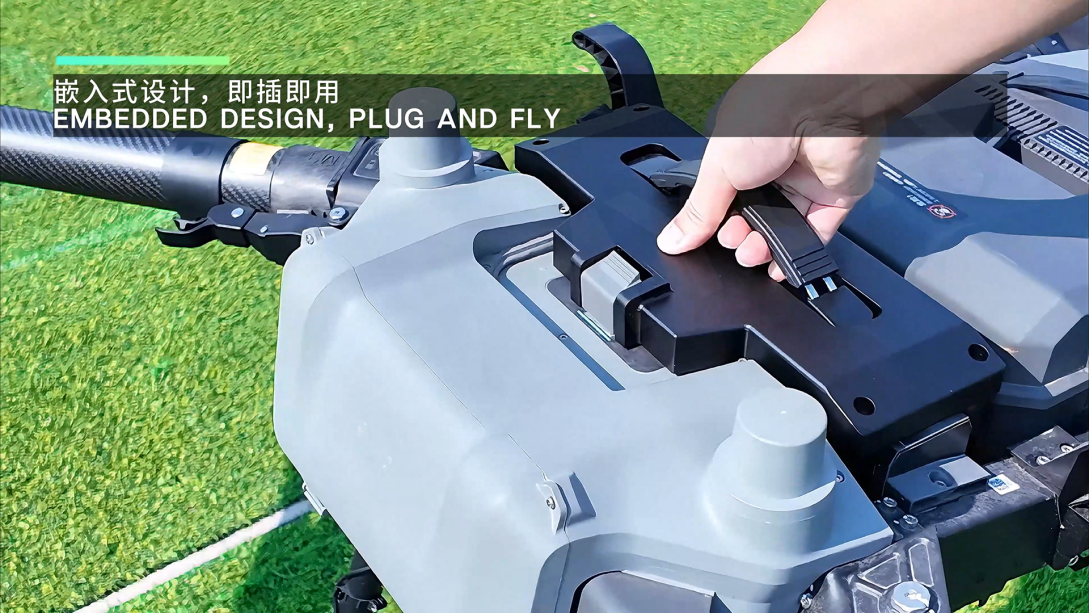

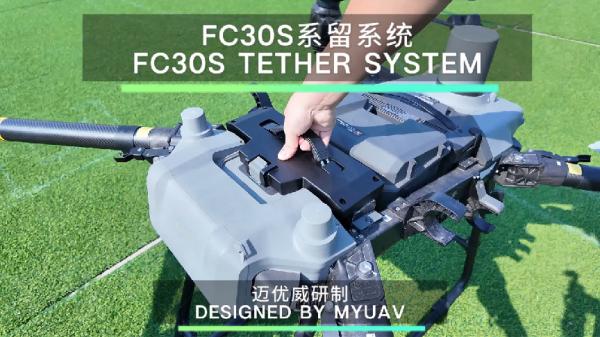

Installation replacing one of the original battery packs. If emergency, the backup battery pack can immediately take over the power supply.
2. System composition

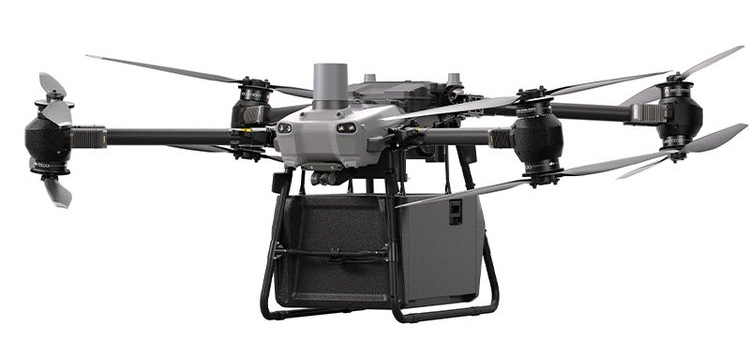

- FlyCart 30 drone
- Payload system
- FC30S Onboard Power Supply together with 240m Tethered Base Station
- 380V min.25kw power by customers
3. Detailed parameters
FC30 drone, parameters and configurations are detailed on the DJI website
Integrated Ground Tethered Base Station

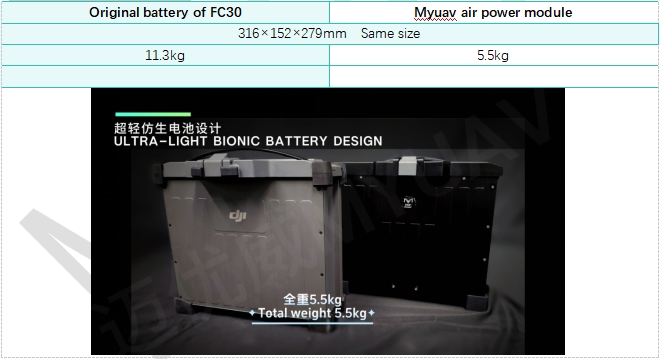

Air power module
Performance indicators

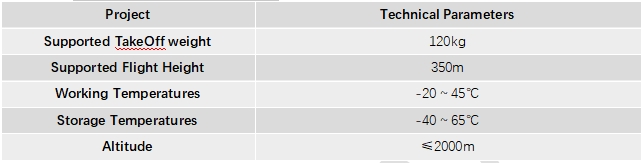

1.1. Environmental characteristics

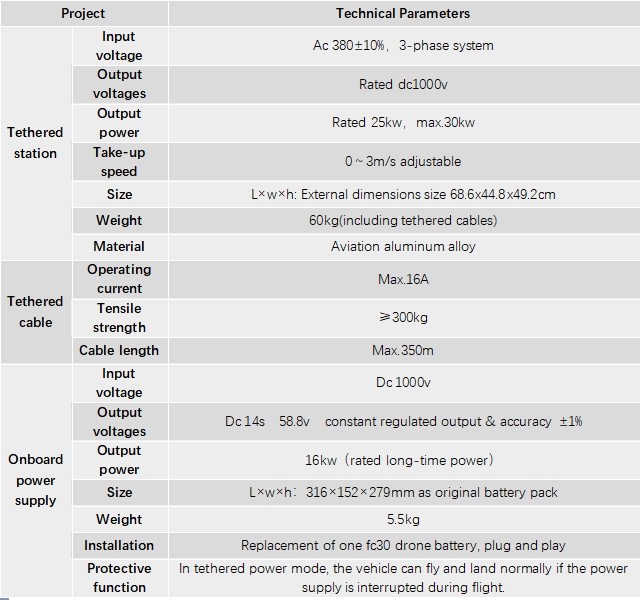

1.2. Technical parameters

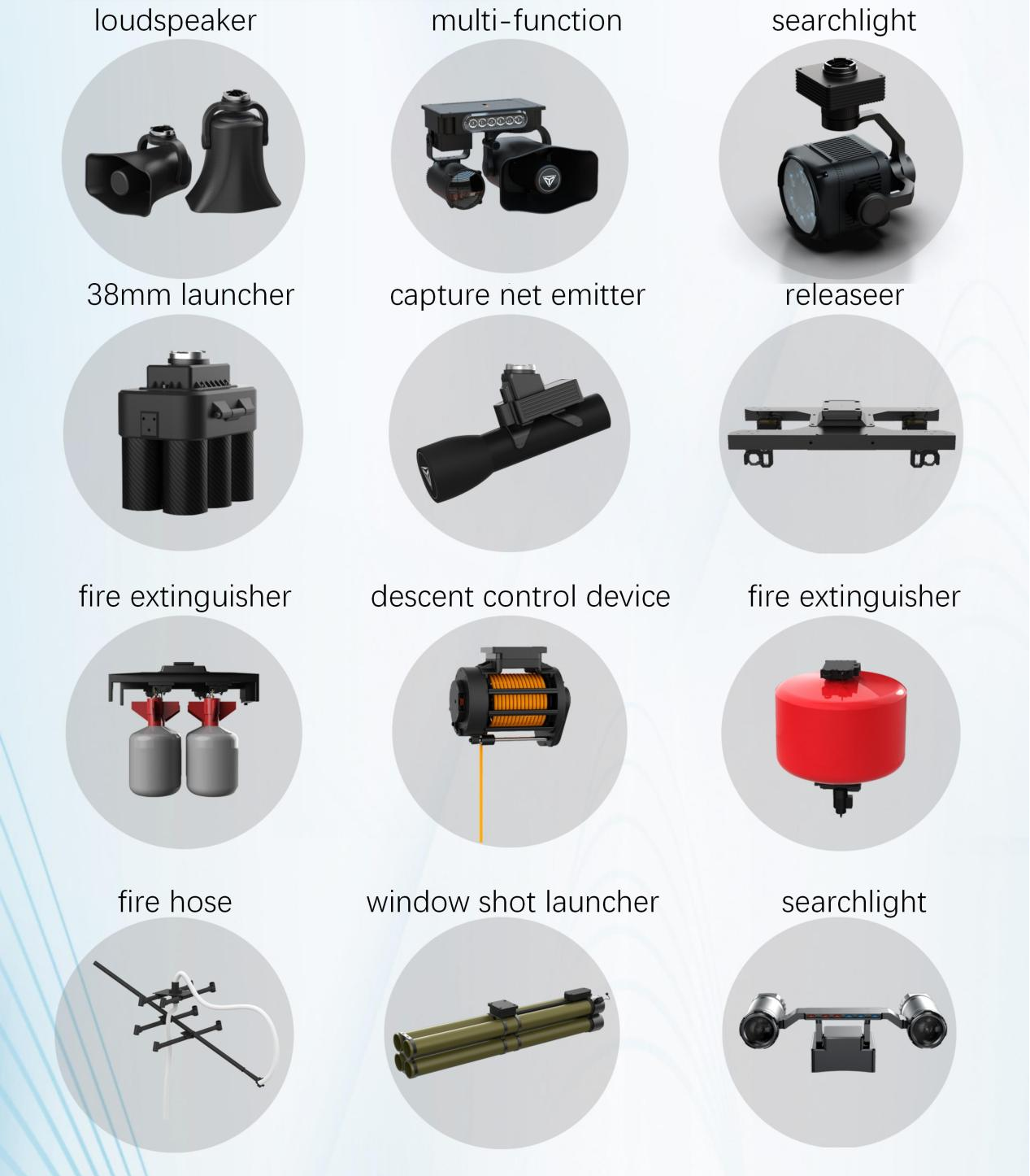

Payload
4. Equipment Operation Procedure
- Check that the equipment is complete: Check that the main body of the drone, the cleaning device, the control system and the guards are intact.
- Install the cleaning device: Install the cleaning device to the main body of the drone and make sure it is firmly connected.
- Connect the power supply: Connect the battery to the remote control and turn on the power switch.
- Control the drone flight: Use the remote control to control the drone flight, adjust the flight height, speed and direction as needed.
- Start cleaning: After determining the cleaning object, switch on the cleaning pump and use the drone to clean the target.
5. Equipment Maintenance
Daily maintenance: after each use, the main body of the drone and the cleaning device should be cleaned to keep the equipment clean and tidy. At the same time, check whether there is any damage or looseness of the parts and deal with them in time.
Regular Maintenance: It is recommended to carry out a comprehensive equipment inspection and maintenance once a month, including replacing worn parts and cleaning the internal circuit boards.
6. Principles of use

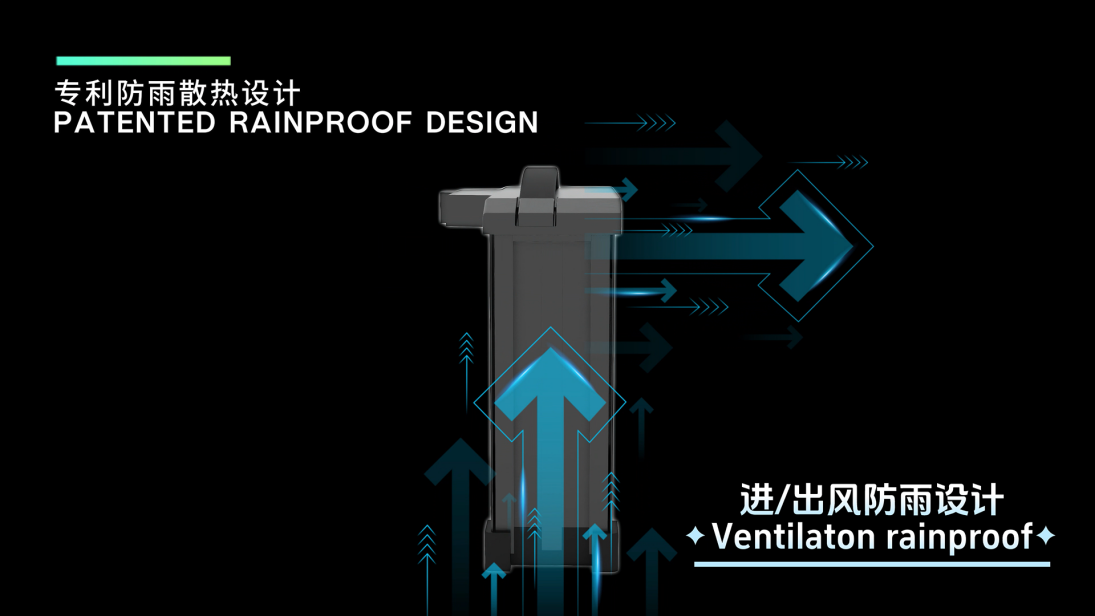

- When in use, the power supply should maintain good ventilation and heat dissipation; the air passage of the module unit should not be blocked;
- The power supply should be used under the environmental conditions specified in the specification;
- Do not adjust the potentiometer in the power supply at will;
- Do not operate in the presence of volatile gases or flammable environments;
- Do not remove the outer cover or touch the internal parts under any circumstances;
- For safety reasons, do not perform internal warranty or parts replacement alone;
- The power supply must be safely insulated when in use, and any side of it must be at least 8mm away from the outer metal shell; if it is less than 8mm, a PVC sheet with a thickness of more than 1mm must be used to strengthen the insulation;
- If you notice smoke or unpleasant odor during startup or use, turn off the power immediately.
7. Warranty
The warranty period for this product is 1 year. During the warranty period, any natural damage under normal use will be repaired free of charge by our company;
However, if any of the following conditions occur, the warranty will not apply:
1. Damage caused by unauthorized repair without the permission of the company;
2. Any addition or modification;
3. Improper operation or use;
Abnormal environmental conditions, exceeding specification requirements, causing damage;
MyUAV FC30S Tethered Drone System FAQs
Q1: What is the MyUAV FC30S Tethered Drone System?
A1: The MyUAV FC30S Tethered Drone System is a cutting-edge aerial platform designed for long-duration missions and high-altitude operations. It combines a lightweight, durable drone with a sophisticated tethering system that provides continuous power from the ground, enabling the drone to remain airborne for extended periods without the need for battery replacements.
Q2: What are the key features of the FC30S Tethered Drone System?
A2: The key features of the FC30S include:
- Extended Flight Time: Capable of maintaining flight for hours due to its tethered power supply.
- High Altitude Operation: Can operate at altitudes up to 240 meters (787 feet).

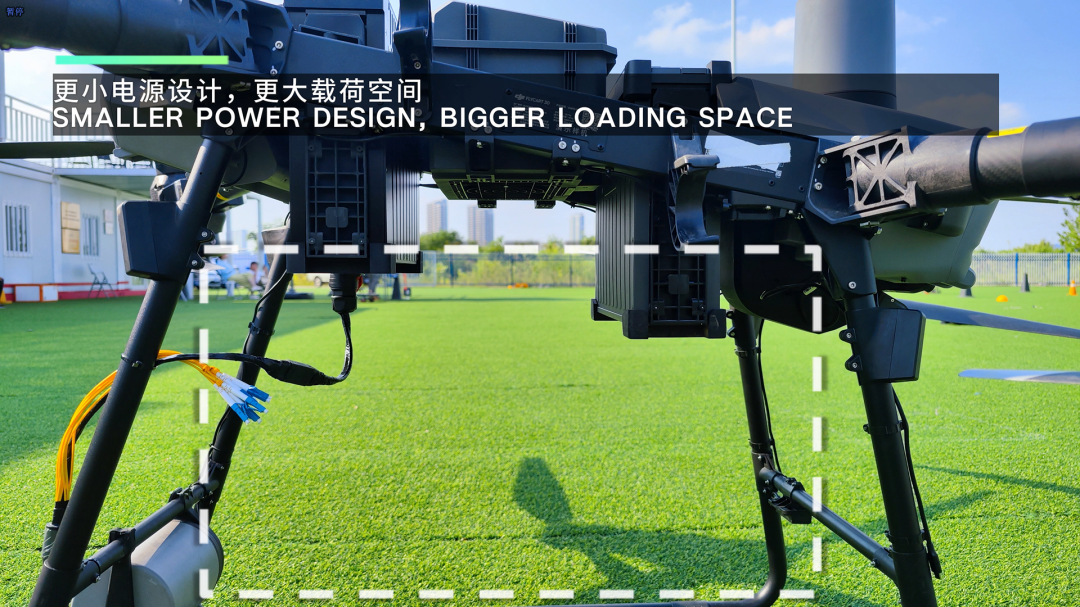

- Lightweight Design: The power station weighs only 6.5 kg (14.3 lbs), significantly reducing the overall weight and increasing payload capacity.
- Safety and Reliability: Equipped with advanced power management and isolation circuits to ensure safe high-voltage transmission.
- Redundant Load Design: Ensures stable long-term power supply and prolonged flight time.
- User-Friendly Controls: Intuitive interface for easy setup and operation.
Q3: What types of applications is the FC30S suitable for?
A3: The FC30S is highly versatile and can be used in a variety of applications, including:
- Surveillance and Security: Continuous monitoring of large areas or critical infrastructure.
- Firefighting: Equipped with specialized equipment to assist in firefighting efforts.
- Search and Rescue: Aids in locating missing persons or providing assistance in disaster-stricken areas.
- Inspection and Maintenance: Ideal for inspecting tall structures such as bridges, wind turbines, and communication towers.
- Environmental Monitoring: Collects data on air quality, pollution levels, and climate conditions.
- Broadcasting and Media: Provides stable aerial footage for live broadcasts and media coverage.
Q4: How does the FC30S handle adverse weather conditions, especially rain?
A4: The FC30S is designed with robust weather-resistant features, allowing it to operate effectively in light rain and moderate winds. However, it is not recommended for use in severe weather conditions such as heavy rain, thunderstorms, or high winds to ensure the safety of the drone and the integrity of the mission.
Q5: What is the payload capacity of the FC30S?
A5: The FC30S has a significant payload capacity, which can be further enhanced by the lightweight design of the power station. It can carry various payloads, such as high-resolution cameras, thermal imaging devices, and specialized sensors, depending on the mission requirements.
